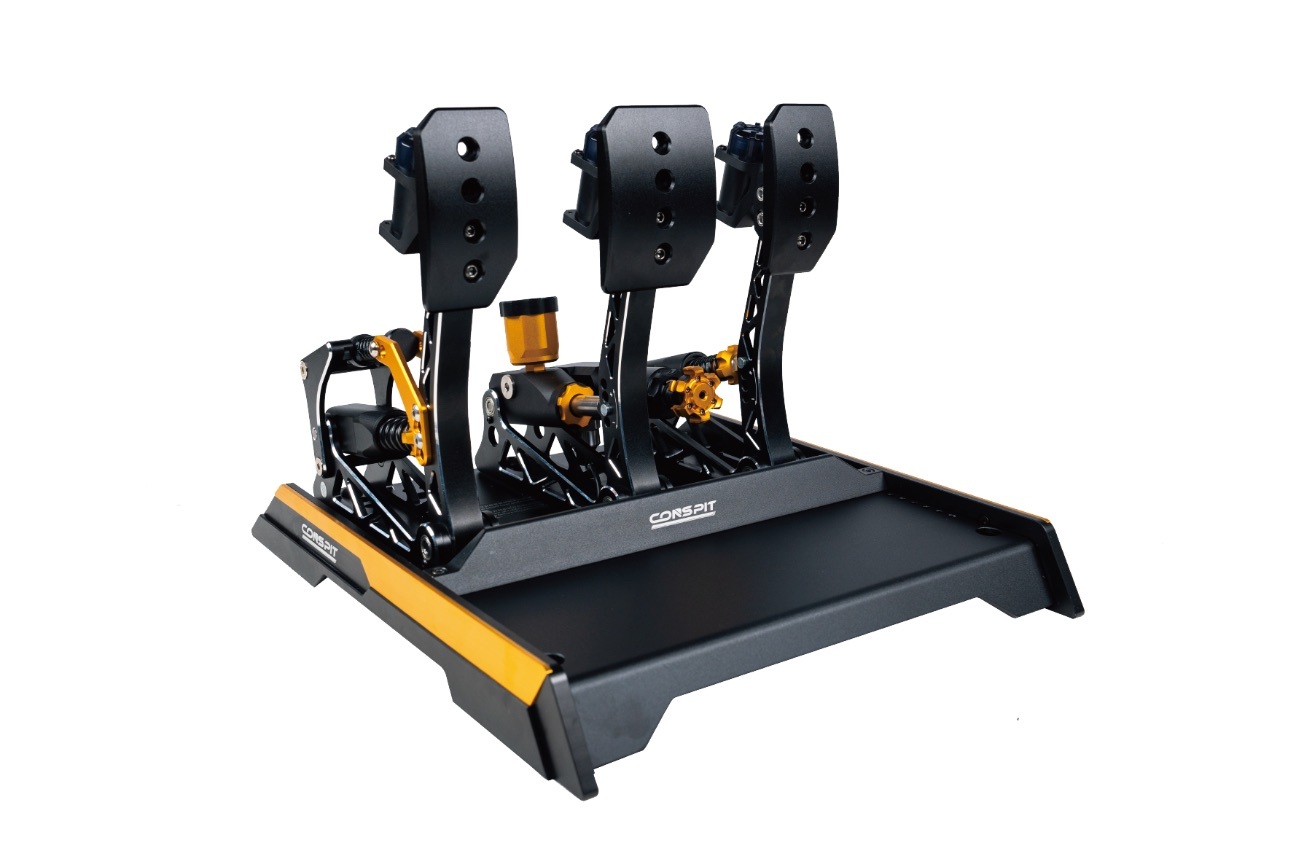

CONSPIT CPP EVO 2 Hydraulic Pedals

CPP EVO 2 upgrades the hydraulic system, sealing structure and pedal mechanics with a 20MPa high-precision pressure sensor and standard M-DVF vibration feedback for smoother, more detailed and highly adjustable pedal control.

{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )

{{amazonProductReview.avg_rating}}( {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}} )

{{ title.name_translations | translateModel }} : {{variationName[$index] | translateModel}}

Quantity

Add to Wishlist

products.quantity_limit99999

This quantity is invalid, please enter a valid quantity.

Sold Out

Please message the shop owner for order details.

Add to Wishlist

Description

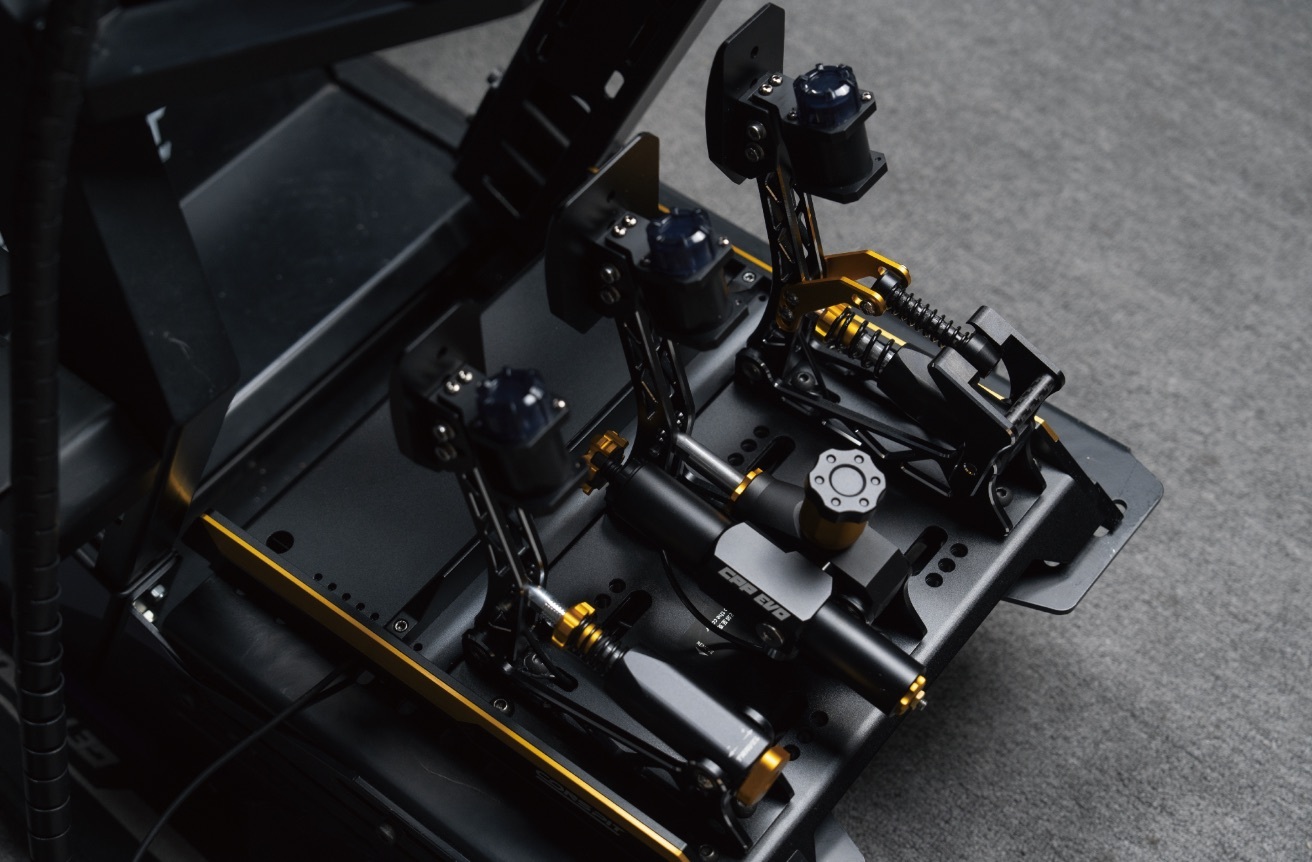

CPP EVO 2 | Advanced Hydraulic Sim Racing Pedals

CPP EVO 2 introduces comprehensive upgrades to its hydraulic system, sealing structure and pedal mechanics. Featuring a 20MPa high-precision hydraulic pressure sensor and standard M-DVF vibration feedback, it delivers detailed and highly adjustable control from heavy braking and trail braking to throttle and clutch operation.

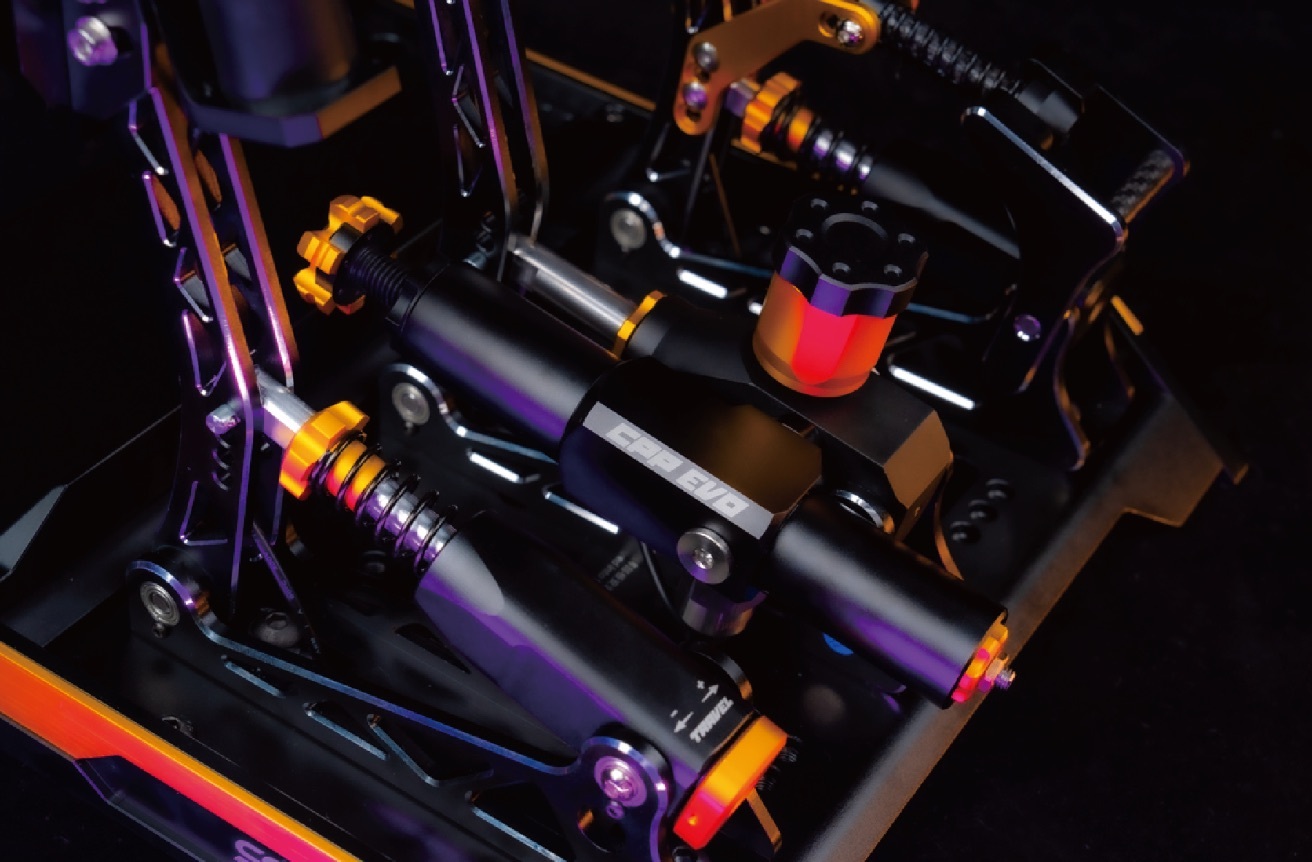

Upgraded Hydraulic System

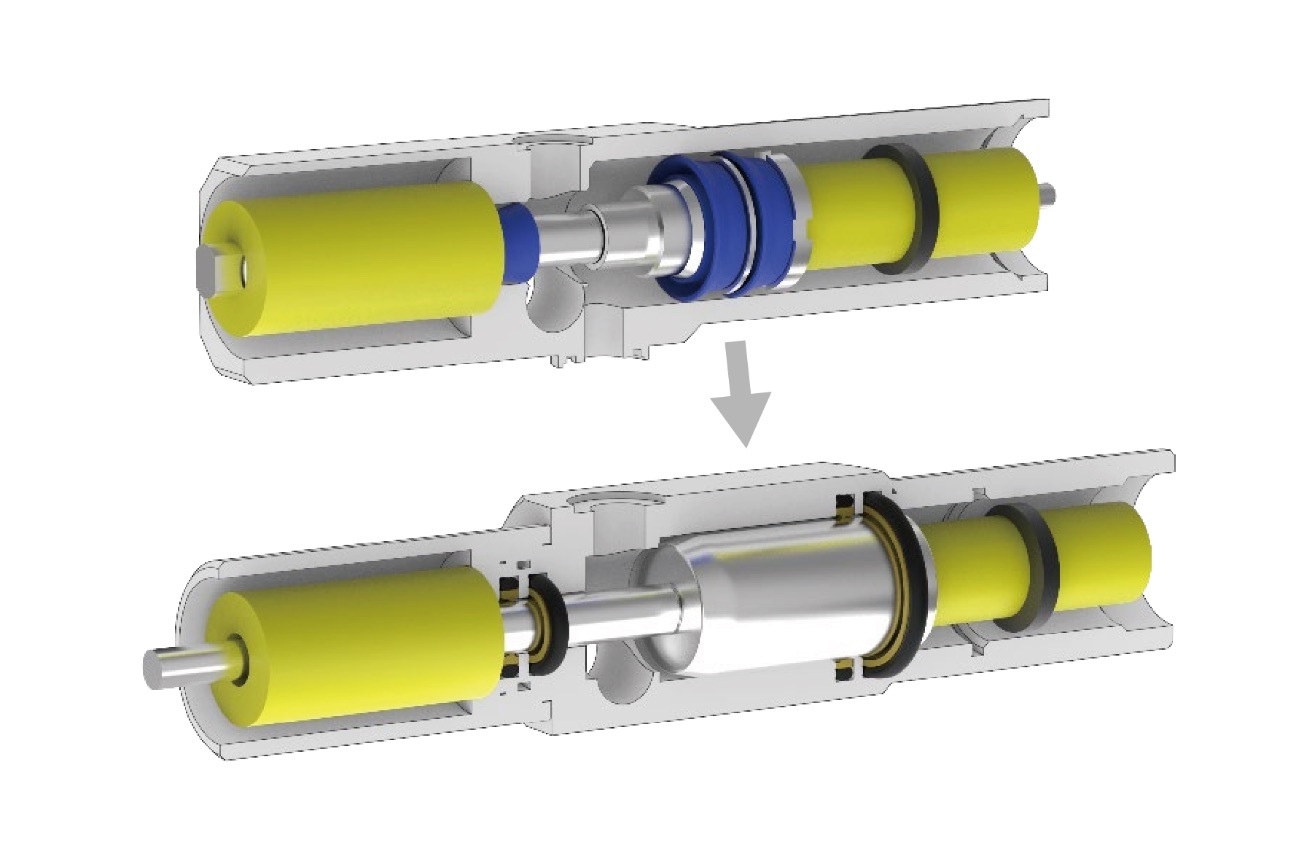

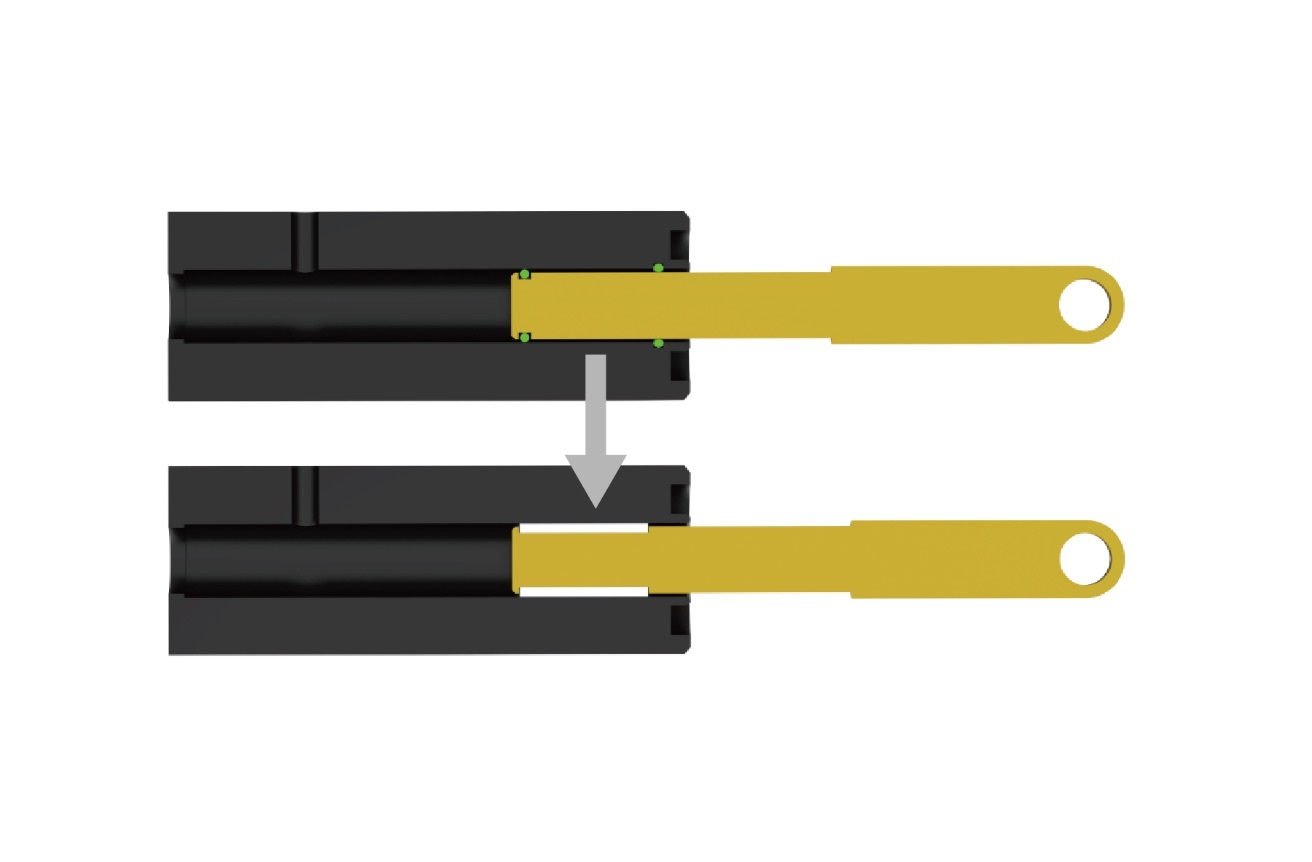

The brake piston is upgraded to chrome-plated 45# steel to reduce deformation and friction. An upgraded dual-layer sealing system supports pressures up to 400 bar while reducing friction by approximately 50%, resulting in smoother brake application and return.

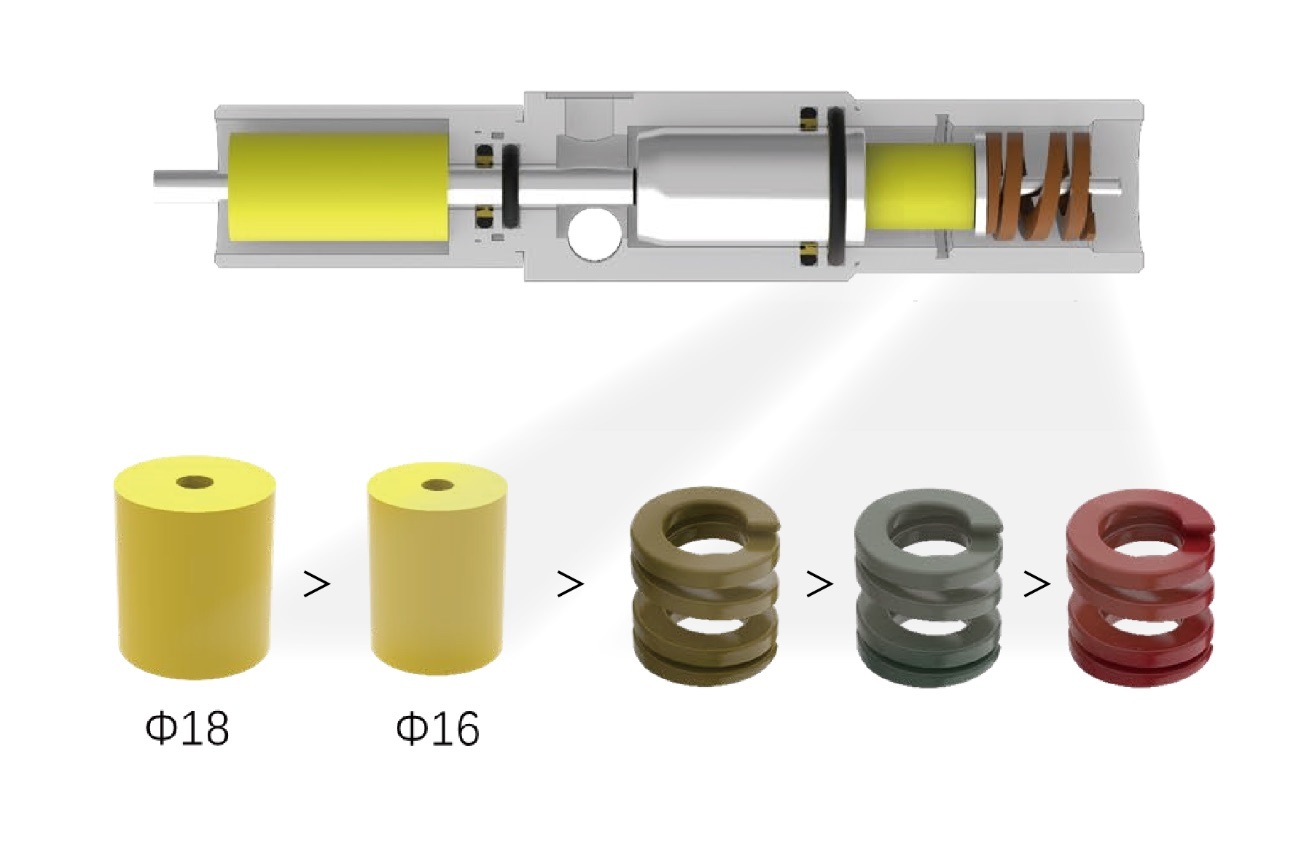

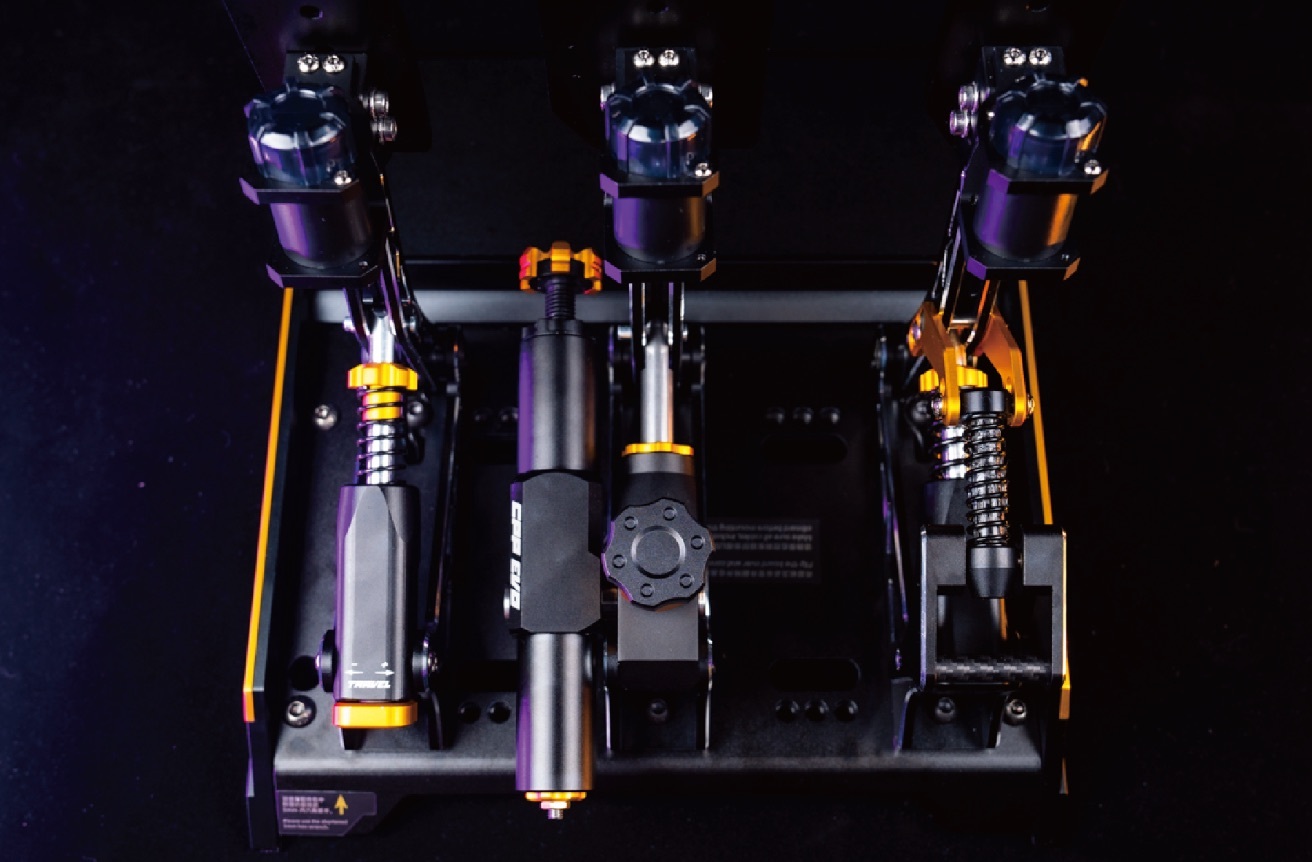

Spring + Elastomer Brake Tuning

Brake feel is generated through a combination of spring and elastomer resistance. The spring controls the initial linear pedal response, while the elastomer provides progressive resistance later in the pedal stroke. Both can be adjusted independently.

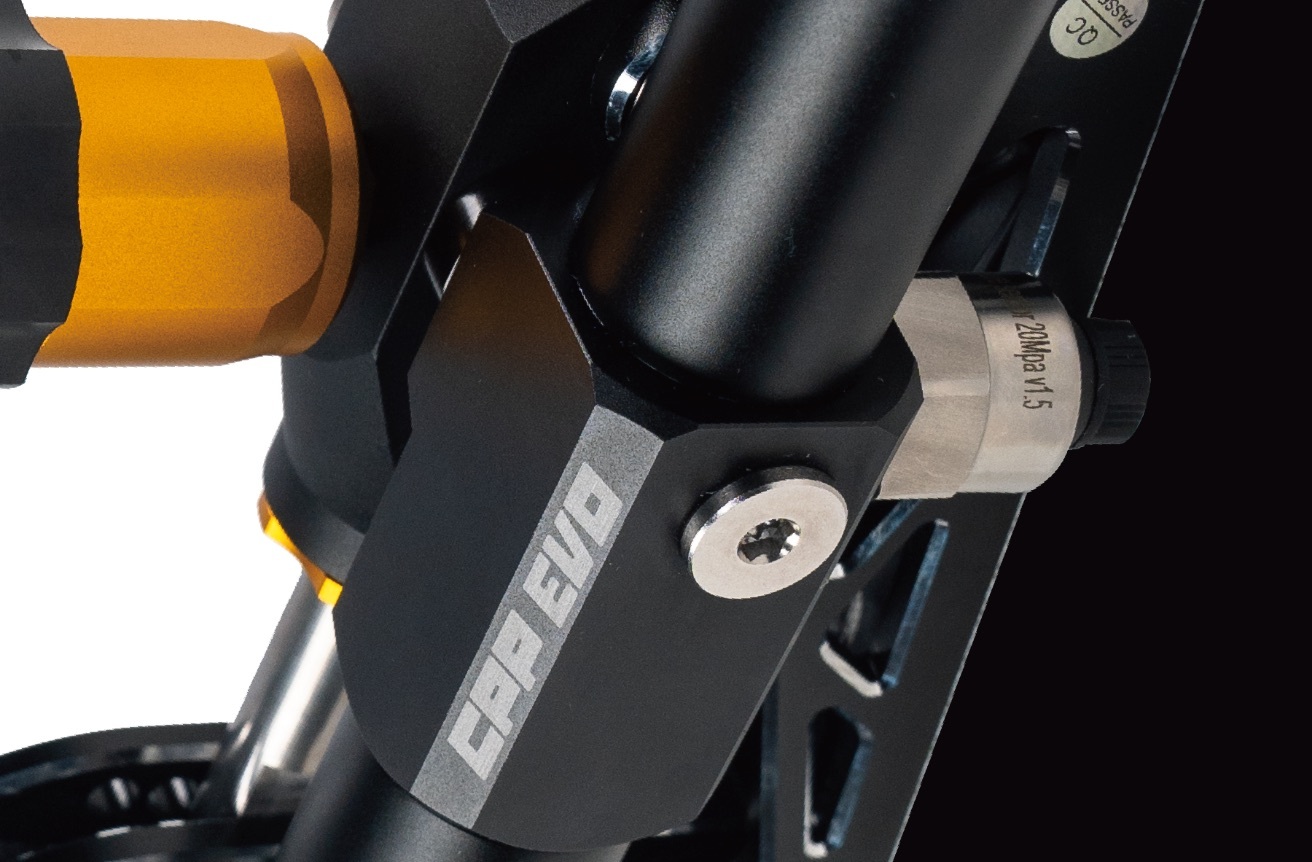

20MPa High-Precision Hydraulic Sensor

A 20MPa high-precision hydraulic sensor directly measures brake pressure, accurately capturing input from initial pressure build-up and maximum braking through progressive brake release into a corner.

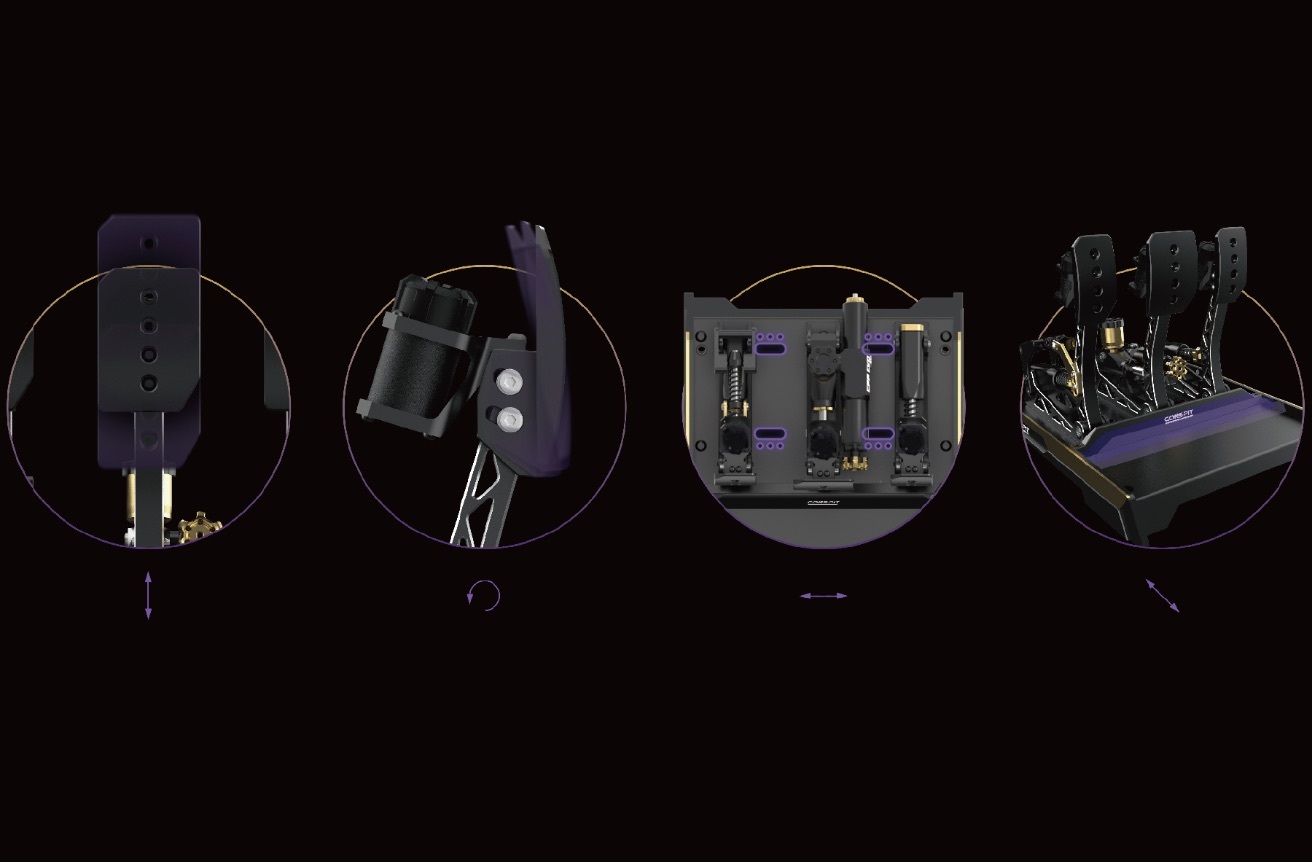

Extensive Pedal Adjustability

Pedal spacing, angle, height and heel plate position can all be adjusted. The throttle offers four-stage quick adjustment plus stepless fine tuning. The brake provides four-stage adjustment, stepless fine tuning and independent preload adjustment, while the clutch features adjustable spring preload and four-stage bite-point adjustment.

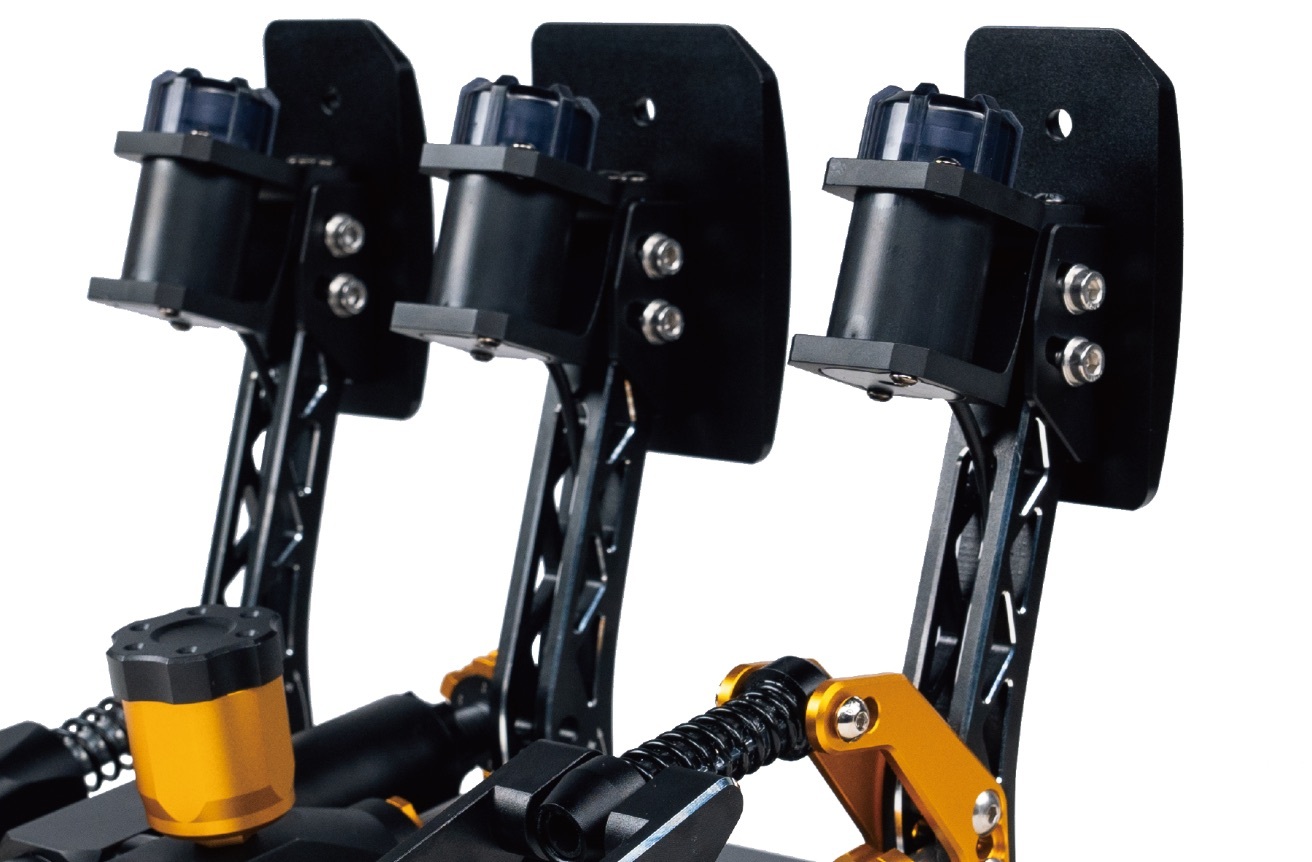

M-DVF Vibration Feedback Included

CPP EVO 2 includes the M-DVF vibration feedback module as standard and supports SimHub ShakeIt Motors, allowing pedal vibration effects to respond to vehicle telemetry.

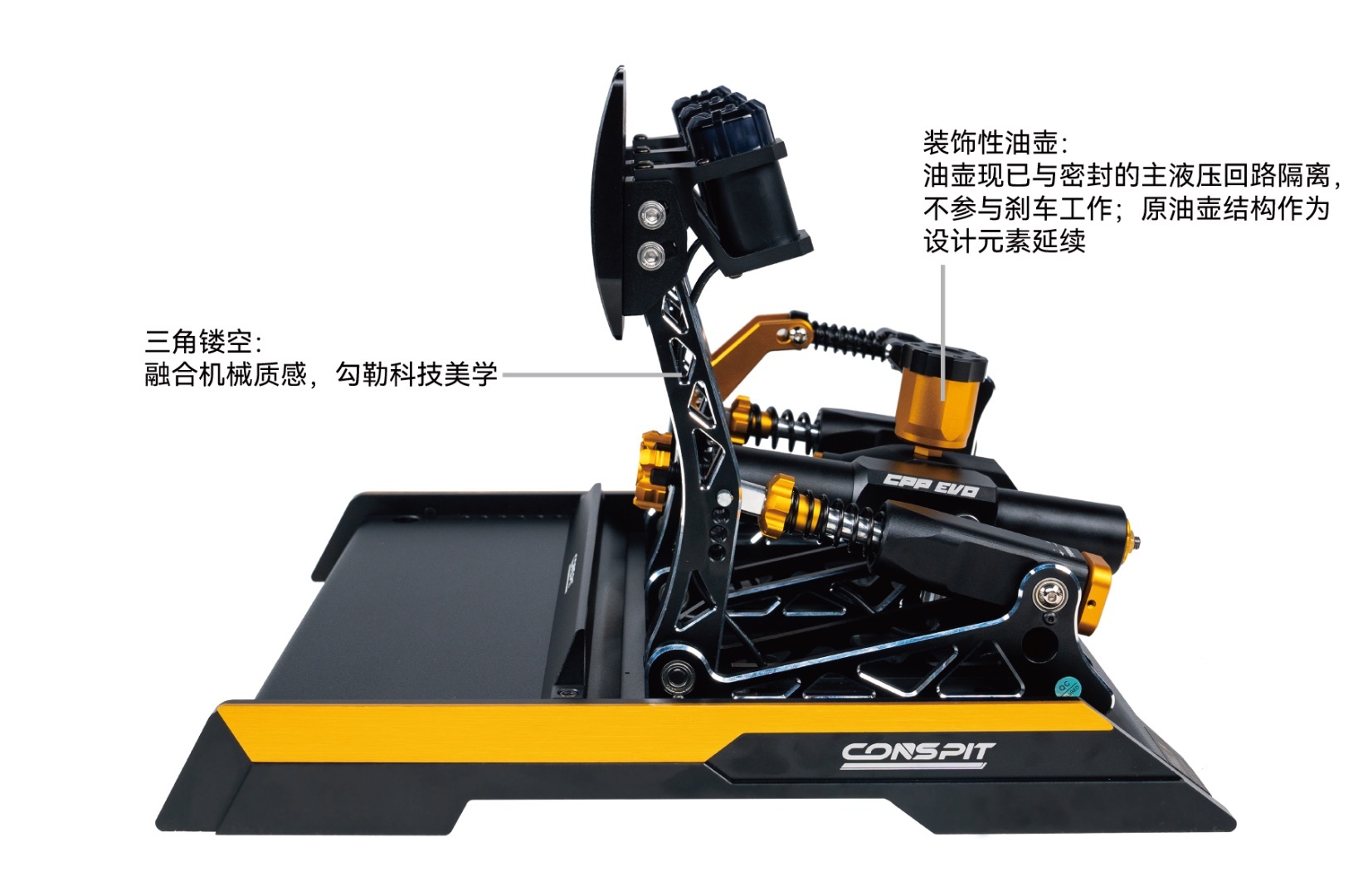

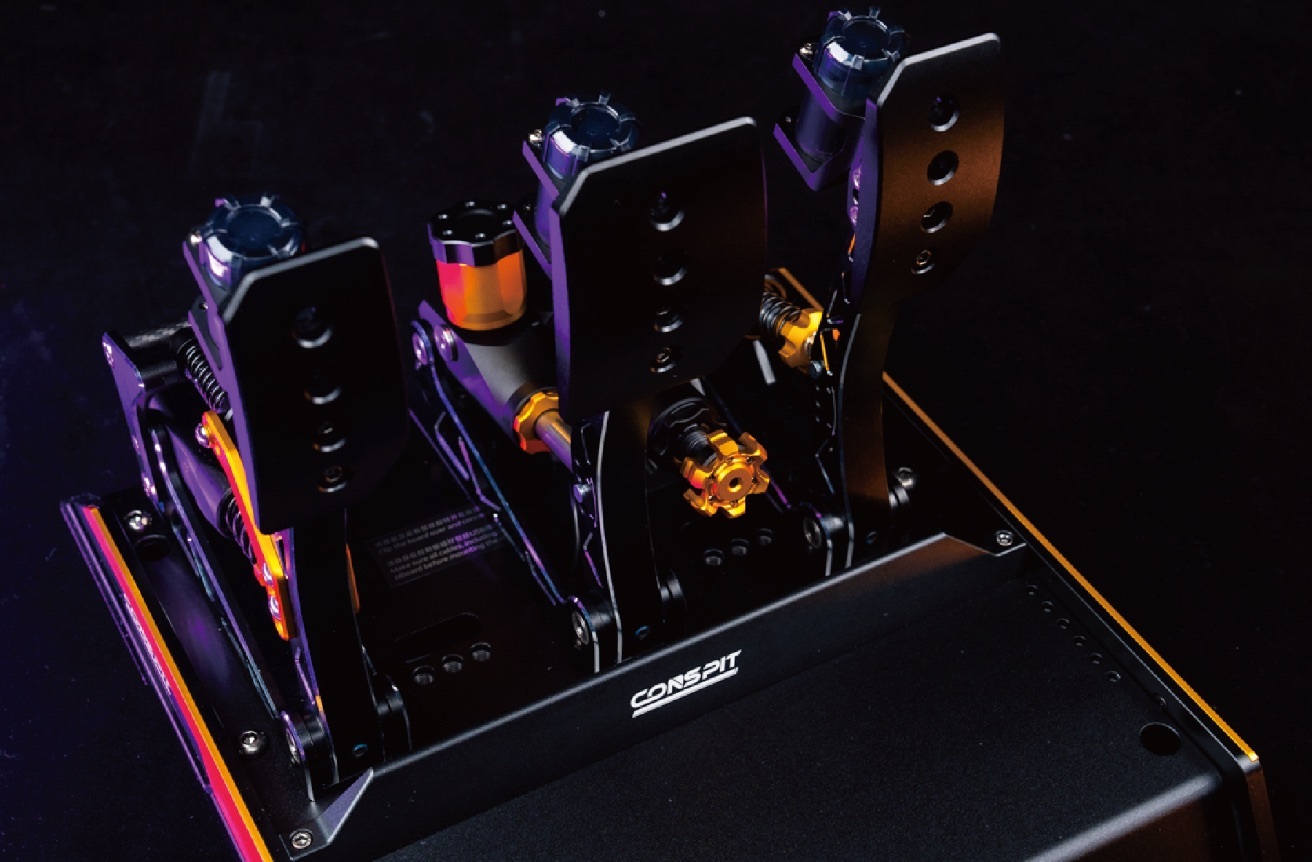

6061-T6 CNC Aluminum Construction

Major components are CNC-machined from 6061-T6 aluminum with sandblasted and anodized finishes for rigidity, durability and consistent performance under heavy pedal loads.

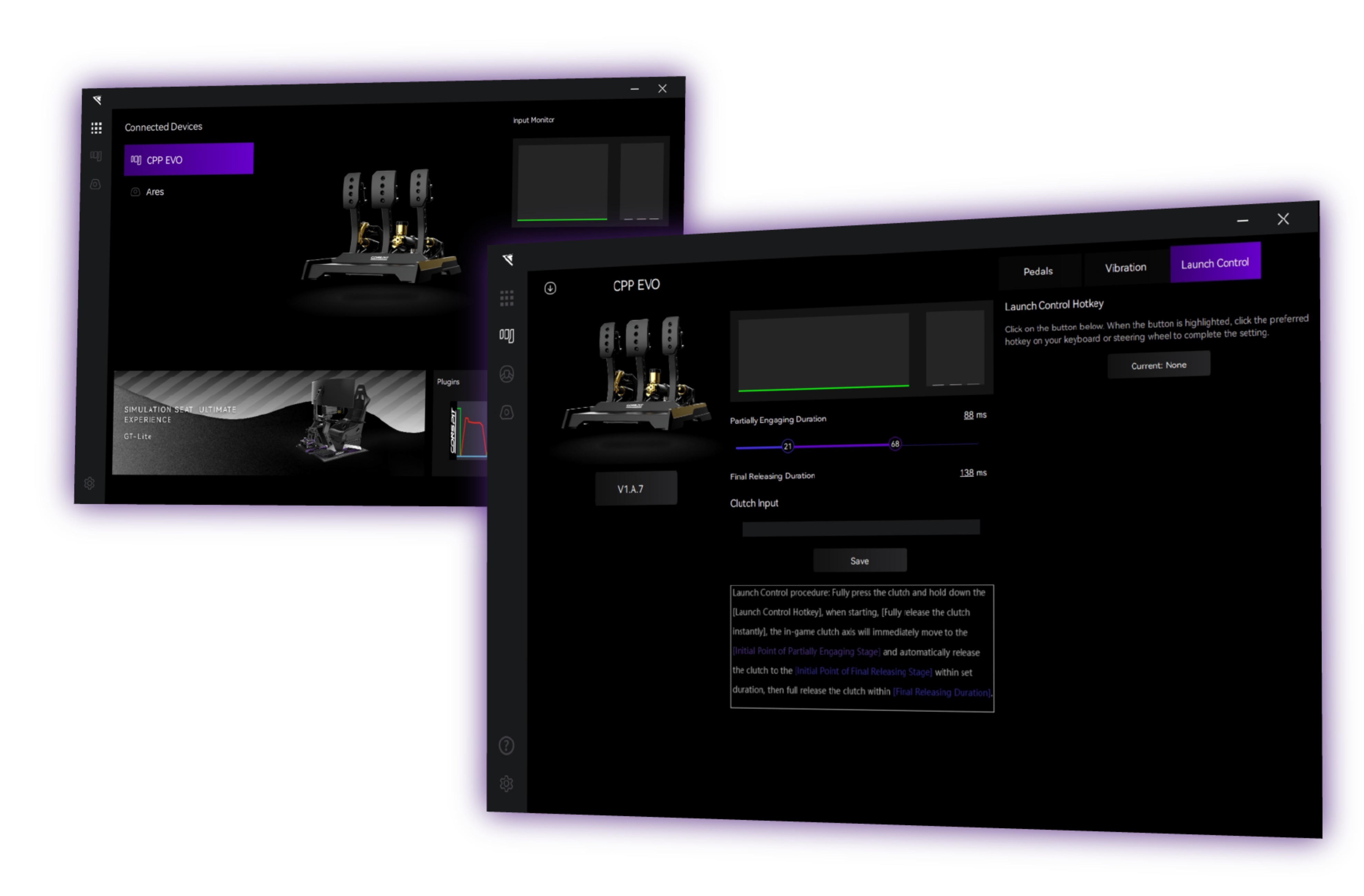

Conspit Link 2.0

Conspit Link 2.0 provides pedal configuration, custom input curves and brake input limit adjustment. CPP EVO 2 can connect directly to a PC via USB or through the rear connection port of an ARES-series wheelbase.
